Deployment管理原创

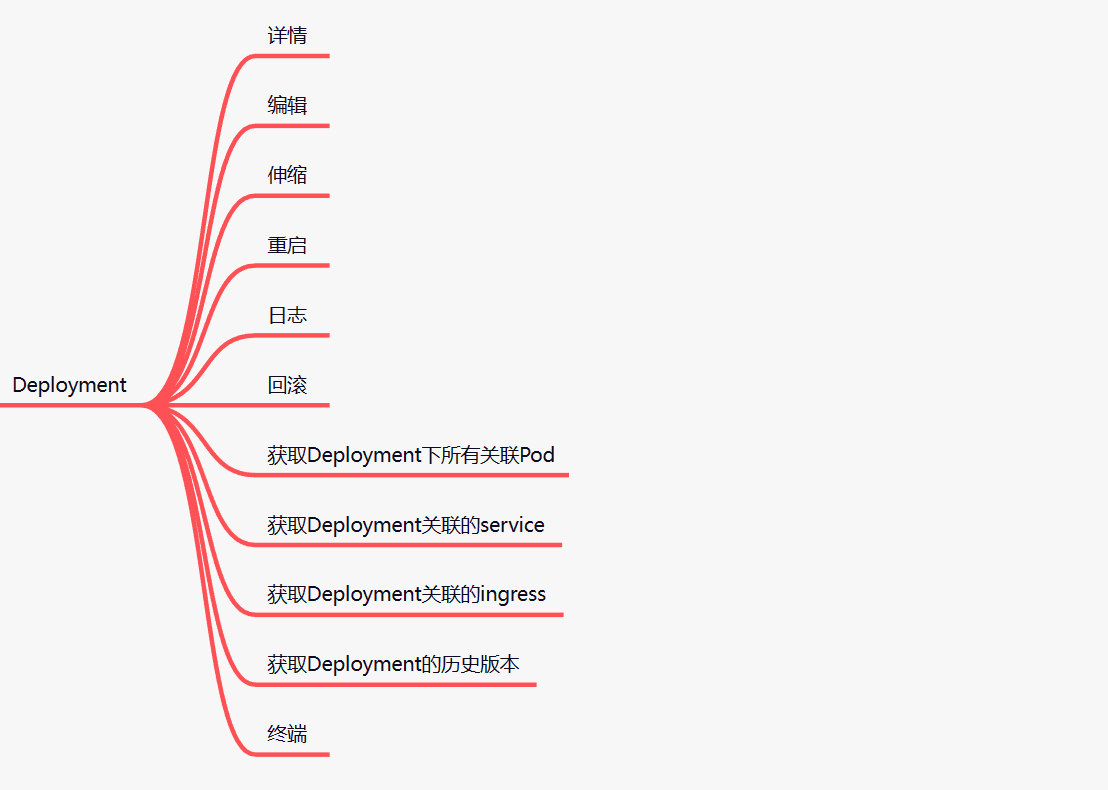

1、功能

56659fd6b9ea3032018be40559afc28c MD5

2、类型转换

2.1、实现类型转换

在 internal\pkg\k8s\deployment\common.go 文件中新增 DeploymentCell，实现和 appv1.Deployment 进行类型转换，如下：

package deployment

import (
	"time"

	"github.com/joker-bai/hawkeye/internal/pkg/k8s/dataselect"
	appv1 "k8s.io/api/apps/v1"
)

type DeploymentCell appv1.Deployment

func (d DeploymentCell) GetName() string {
	return d.Name
}

func (d DeploymentCell) GetCreation() time.Time {
	return d.CreationTimestamp.Time
}

// 类型转换
func toCells(deploys []appv1.Deployment) []dataselect.DataCell {
	cells := make([]dataselect.DataCell, len(deploys))
	for i, d := range deploys {
		cells[i] = DeploymentCell(d)
	}
	return cells
}

func fromCells(cells []dataselect.DataCell) []appv1.Deployment {
	deploys := make([]appv1.Deployment, len(cells))
	for i := range cells {
		deploys[i] = appv1.Deployment(cells[i].(DeploymentCell))
	}
	return deploys
}

2.2、实现增删改查

（1）创建 internal/pkg/k8s/deployment/create.go 文件，输入以下内容，用于创建 deployment

package deployment

import (
	"context"
	"github.com/joker-bai/hawkeye/global"
	"github.com/joker-bai/hawkeye/internal/app/requests"
	appv1 "k8s.io/api/apps/v1"
	corev1 "k8s.io/api/core/v1"
	"k8s.io/apimachinery/pkg/api/resource"
	metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"
	"k8s.io/apimachinery/pkg/util/intstr"
	"strings"
)

const (
	DescriptionAnnotationKey = "description"
)

func CreateDeployment(deploy *requests.K8sDeploymentCreateRequest) error {
	annotations := map[string]string{}
	if deploy.Description != nil {
		annotations[DescriptionAnnotationKey] = *deploy.Description
	}

	labels := getLabelsMap(deploy.Labels)

	metadata := metav1.ObjectMeta{
		Annotations: annotations,
		Labels:      labels,
		Name:        deploy.Name,
	}

	containerSpec := corev1.Container{
		Name:  deploy.Name,
		Image: deploy.ContainerImage,
		SecurityContext: &corev1.SecurityContext{
			Privileged: &deploy.RunAsPrivileged,
		},
		Resources: corev1.ResourceRequirements{Requests: make(map[corev1.ResourceName]resource.Quantity)},
		Env:       convertEnvVarsSpec(deploy.Variables),
	}

	if deploy.ContainerCommand != nil {
		containerSpec.Command = []string{*deploy.ContainerCommand}
	}
	if deploy.ContainerCommandArgs != nil {
		containerSpec.Args = strings.Fields(*deploy.ContainerCommandArgs)
	}
	if deploy.MemoryRequirement != nil {
		containerSpec.Resources.Requests[corev1.ResourceMemory] = resource.MustParse(*deploy.MemoryRequirement)
	}
	if deploy.CpuRequirement != nil {
		containerSpec.Resources.Requests[corev1.ResourceCPU] = resource.MustParse(*deploy.CpuRequirement)
	}

	// 是否开启Readiness健康检测
	if deploy.IsReadinessEnable {
		probeHandler := getContainerProbe(deploy.ReadinessProbe)
		containerSpec.ReadinessProbe = &corev1.Probe{
			ProbeHandler:        probeHandler,
			InitialDelaySeconds: deploy.ReadinessProbe.InitialDelaySeconds,
			TimeoutSeconds:      deploy.ReadinessProbe.TimeoutSeconds,
			PeriodSeconds:       deploy.ReadinessProbe.PeriodSeconds,
			SuccessThreshold:    deploy.ReadinessProbe.SuccessThreshold,
			FailureThreshold:    deploy.ReadinessProbe.FailureThreshold,
		}
	}
	if deploy.IsLivenessEnable {
		probehandler := getContainerProbe(deploy.ReadinessProbe)

		containerSpec.LivenessProbe = &corev1.Probe{
			ProbeHandler:        probehandler,
			InitialDelaySeconds: deploy.LivenessProbe.InitialDelaySeconds,
			TimeoutSeconds:      deploy.LivenessProbe.TimeoutSeconds,
			PeriodSeconds:       deploy.LivenessProbe.PeriodSeconds,
			SuccessThreshold:    deploy.LivenessProbe.SuccessThreshold,
			FailureThreshold:    deploy.LivenessProbe.FailureThreshold,
		}
	}

	podSpec := corev1.PodSpec{Containers: []corev1.Container{containerSpec}}

	if deploy.ImagePullSecret != nil {
		podSpec.ImagePullSecrets = []corev1.LocalObjectReference{{Name: *deploy.ImagePullSecret}}
	}

	podTemplate := corev1.PodTemplateSpec{
		ObjectMeta: metadata,
		Spec:       podSpec,
	}

	deployment := &appv1.Deployment{
		ObjectMeta: metadata,
		Spec: appv1.DeploymentSpec{
			Replicas: &deploy.Replicas,
			Template: podTemplate,
			Selector: &metav1.LabelSelector{
				MatchLabels: labels,
			},
		},
	}

	if _, err := global.K8S.AppsV1().Deployments(deploy.Namespace).Create(context.TODO(), deployment, metav1.CreateOptions{}); err != nil {
		return err
	}

	// 如果需要创建Service,执行以下代码

	if deploy.IsCreateService {
		// TODO
	}

	return nil
}

func getLabelsMap(labels []requests.Label) map[string]string {
	res := map[string]string{}
	for _, label := range labels {
		res[label.Key] = label.Value
	}
	return res
}

func convertEnvVarsSpec(envs []requests.EnvironmentVariable) []corev1.EnvVar {
	var res []corev1.EnvVar
	for _, env := range envs {
		res = append(res, corev1.EnvVar{Name: env.Name, Value: env.Value})
	}
	return res
}

func getContainerProbe(probe requests.HealthCheckDetail) corev1.ProbeHandler {
	var probehandler corev1.ProbeHandler
	switch probe.Type {
	case "HTTP":
		var httpHeader []corev1.HTTPHeader
		if len(probe.HttpHeader) > 0 {
			for _, header := range probe.HttpHeader {
				h := corev1.HTTPHeader{
					Name:  header.Name,
					Value: header.Value,
				}
				httpHeader = append(httpHeader, h)
			}
		}
		probehandler.HTTPGet = &corev1.HTTPGetAction{
			Path: probe.Path,
			Port: intstr.IntOrString{
				Type:   0,
				IntVal: probe.Port,
			},
			Scheme:      corev1.URIScheme(probe.Protocol),
			HTTPHeaders: httpHeader,
		}
	case "TCP":
		probehandler.TCPSocket = &corev1.TCPSocketAction{
			Port: intstr.IntOrString{
				Type:   0,
				IntVal: probe.Port,
			},
		}
	case "EXEC":
		probehandler.Exec = &corev1.ExecAction{
			Command: []string{probe.Command},
		}
	}
	return probehandler
}

（2）在 internal/pkg/k8s/deployment/delete.go 中创建以下内容，用户删除 deployment

package deployment

import (
	"context"
	"github.com/joker-bai/hawkeye/global"
	metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"
)

func DeleteDeployment(name, namespace string) error {
	if err := global.K8S.AppsV1().Deployments(namespace).Delete(context.TODO(), name, metav1.DeleteOptions{}); err != nil {
		return err
	}
	return nil
}

（3）在 internal/pkg/k8s/deployment/list.go 中创建以下内容，用于列出 deployment 列表

package deployment

import (
	"context"

	"github.com/joker-bai/hawkeye/global"
	"github.com/joker-bai/hawkeye/internal/pkg/k8s/dataselect"
	appv1 "k8s.io/api/apps/v1"
	metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"
)

func GetDeploymentList(name, namespace string, page, limit int) ([]appv1.Deployment, error) {
	deploys, err := global.K8S.AppsV1().Deployments(namespace).List(context.TODO(), metav1.ListOptions{})
	if err != nil {
		return nil, err
	}

	// 做排序
	selector := dataselect.DataSelector{
		GenericDataList: toCells(deploys.Items),
		DataSelectQuery: &dataselect.DataSelectQuery{
			Filter: &dataselect.FilterQuery{
				Name: name,
			},
			Paginate: &dataselect.PaginateQuery{
				Limit: limit,
				Page:  page,
			},
		},
	}

	filted := selector.Filter()
	data := filted.Sort().Paginate()
	return fromCells(data.GenericDataList), nil
}

（4）在 internal/pkg/k8s/deployment/update.go 中创建以下内容，用于更新 deployment

package deployment

import (
	"context"
	"encoding/json"
	"github.com/joker-bai/hawkeye/global"
	appv1 "k8s.io/api/apps/v1"
	metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"
)

func UpdateDeployment(namespace, content string) error {
	var deploy appv1.Deployment
	if err := json.Unmarshal([]byte(content), &deploy); err != nil {
		return err
	}
	if _, err := global.K8S.AppsV1().Deployments(namespace).Update(context.TODO(), &deploy, metav1.UpdateOptions{}); err != nil {
		return err
	}
	return nil
}

（5）在 internal/pkg/k8s/deployment/detail.go 中创建以下内容，用于获取 deployment 详情

package deployment

import (
	"context"

	"github.com/joker-bai/hawkeye/global"
	appv1 "k8s.io/api/apps/v1"
	metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"
)

func GetDeploymentDetail(name, namespace string) (*appv1.Deployment, error) {
	deploy, err := global.K8S.AppsV1().Deployments(namespace).Get(context.TODO(), name, metav1.GetOptions{})
	if err != nil {
		return nil, err
	}
	return deploy, nil
}

（6）在 internal/pkg/k8s/deployment/restart.go 中创建以下内容，用于重启 Deployment

package deployment

import (
	"context"
	"encoding/json"
	"github.com/joker-bai/hawkeye/global"
	metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"
	"k8s.io/apimachinery/pkg/types"
	"strconv"
	"time"
)

func RestartDeployment(name, namespace string) error {
	// 组装数据
	patchData := map[string]interface{}{
		"spec": map[string]interface{}{
			"template": map[string]interface{}{
				"containers": []map[string]interface{}{
					{
						"name": name,
						"env": []map[string]string{
							{
								"name":  "RESTART_",
								"value": strconv.FormatInt(time.Now().Unix(), 10),
							},
						},
					},
				},
			},
		},
	}

	patchBytes, err := json.Marshal(patchData)
	if err != nil {
		return err
	}

	// 调用patch更新Deployment
	_, err = global.K8S.AppsV1().Deployments(namespace).Patch(context.TODO(), name, types.MergePatchType, patchBytes, metav1.PatchOptions{})
	if err != nil {
		return err
	}
	return nil
}

（7）在 internal/pkg/k8s/deployment/scale.go 中增加以下内容，用于伸缩 Deployment

package deployment

import (
	"context"
	"github.com/joker-bai/hawkeye/global"
	metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"
)

func ScaleDeployment(name, namespace string, scaleNum int32) error {
	// 获取当前副本数
	scale, err := global.K8S.AppsV1().Deployments(namespace).GetScale(context.TODO(), name, metav1.GetOptions{})
	if err != nil {
		return err
	}
	// 修改副本数
	scale.Spec.Replicas = scaleNum
	// 更新副本数
	if _, err := global.K8S.AppsV1().Deployments(namespace).UpdateScale(context.TODO(), name, scale, metav1.UpdateOptions{}); err != nil {
		return err
	}
	return nil
}

（8）在 internal/pkg/k8s/deployment/rollback.go 中新增以下内容，用于回滚 Deployment

package deployment

import (
	"context"
	"github.com/joker-bai/hawkeye/global"
	metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"
)

// 回滚

func RollbackDeployment(name, namespace, replicaSet string) error {
	d, err := global.K8S.AppsV1().Deployments(namespace).Get(context.TODO(), name, metav1.GetOptions{})
	if err != nil {
		return err
	}

	// 获取replicaSet
	replicaSets, err := GetDeploymentReplicaSet(name, namespace)
	if err != nil {
		return err
	}

	for _, rs := range replicaSets {
		if rs.ObjectMeta.Name == replicaSet {
			d.Spec.Template = rs.Spec.Template
			_, err = global.K8S.AppsV1().Deployments(namespace).Update(context.TODO(), d, metav1.UpdateOptions{})
			if err != nil {
				return nil
			}
		}
	}

	return nil
}

（9）在 internal/pkg/k8s/deployment/replicaset.go 中新增以下内容，用户获取 ReplicaSet

package deployment

import (
	"context"
	"github.com/joker-bai/hawkeye/global"
	appv1 "k8s.io/api/apps/v1"
	metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"
)

// 获取ReplicaSet

func GetDeploymentReplicaSet(name, namespace string) ([]appv1.ReplicaSet, error) {
	d, err := global.K8S.AppsV1().Deployments(namespace).Get(context.TODO(), name, metav1.GetOptions{})
	if err != nil {
		return nil, err
	}
	// 先获取labelSelector
	label := d.Spec.Selector.String()

	rsl, err := global.K8S.AppsV1().ReplicaSets(namespace).List(context.TODO(), metav1.ListOptions{LabelSelector: label})
	if err != nil {
		return nil, err
	}

	return rsl.Items, nil
}

（10）在 internal/pkg/k8s/deployment/pod.go 中新增以下内容，用户获取 Deployment 的 Pod

package deployment

import (
	"context"
	"github.com/joker-bai/hawkeye/global"
	corev1 "k8s.io/api/core/v1"
	metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"
)

func GetDeploymentPod(name, namespace string) ([]corev1.Pod, error) {
	d, err := global.K8S.AppsV1().Deployments(namespace).Get(context.TODO(), name, metav1.GetOptions{})
	if err != nil {
		return nil, err
	}
	// 先获取labelSelector
	label := d.Spec.Selector.String()

	var pods *corev1.PodList
	// 根据label获取Pod
	pods, err = global.K8S.CoreV1().Pods(namespace).List(context.TODO(), metav1.ListOptions{LabelSelector: label})
	if err != nil {
		return nil, err
	}
	return pods.Items, nil
}

3、实现 services 方法

3.1、请求参数校验

在 internal/app/requests 目录中新建 k8s_deployment.go 文件，写入以下内容以完成请求参数校验：

package requests

import (
	"github.com/gin-gonic/gin"
	"github.com/joker-bai/hawkeye/pkg/app"
	"github.com/thedevsaddam/govalidator"
)

type K8sDeploymentCreateRequest struct {
	Name                 string                `json:"name" valid:"name"`                                     // Deployment的名字
	ContainerImage       string                `json:"container_image" valid:"container_image"`               // 容器镜像名
	ImagePullSecret      *string               `json:"image_pull_secret" valid:"image_pull_secret"`           // 拉取镜像的密钥
	ContainerCommand     *string               `json:"container_command" valid:"container_command"`           // 容器启动时执行的命令
	ContainerCommandArgs *string               `json:"container_command_args" valid:"container_command_args"` // 容器启动时执行命令的参数
	Replicas             int32                 `json:"replicas" valid:"replicas"`                             // 副本数
	PortMappings         []PortMapping         `json:"port_mappings" valid:"port_mappings"`                   // 容器端口
	Variables            []EnvironmentVariable `json:"variables" valid:"variables"`                           // 环境变量
	IsCreateService      bool                  `json:"is_create_service" valid:"is_create_service"`           // 是否创建Service
	Description          *string               `json:"description" valid:"description"`                       // 描述
	Namespace            string                `json:"namespace" valid:"namespace"`                           // 名称空间
	MemoryRequirement    *string               `json:"memory_requirement" valid:"memory_requirement"`         // 内存
	CpuRequirement       *string               `json:"cpu_requirement" valid:"cpu_requirement"`               // CPU
	Labels               []Label               `json:"labels" valid:"labels"`                                 // 标签
	RunAsPrivileged      bool                  `json:"run_as_privileged" valid:"run_as_privileged"`           // 是否特权用户运行容器
	IsReadinessEnable    bool                  `json:"is_readiness_enable" valid:"is_readiness_enable"`       // 是否开启ReadinessProbe健康检查
	ReadinessProbe       HealthCheckDetail     `json:"readiness_probe" valid:"readiness_probe"`               // ReadinessProbe配置
	IsLivenessEnable     bool                  `json:"is_liveness_enable" valid:"is_liveness_enable"`         // 是否开启LivenessProbe健康检查
	LivenessProbe        HealthCheckDetail     `json:"liveness_probe" valid:"liveness_probe"`                 // LivenessProbe 主要配置
}

type HealthCheckDetail struct {
	Type                string       `json:"type" valid:"type"`                                   // 检测方式：HTTP,TCP,Commond
	Protocol            string       `json:"protocol" valid:"protocol"`                           // 协议
	Path                string       `json:"path" valid:"path"`                                   // 路径
	Port                int32        `json:"port" valid:"port"`                                   // 端口
	HttpHeader          []HttpHeader `json:"http_header" valid:"http_header"`                     // HTTP头
	InitialDelaySeconds int32        `json:"initial_delay_seconds" valid:"initial_delay_seconds"` // 延迟探测时间
	PeriodSeconds       int32        `json:"period_seconds" valid:"period_seconds"`               // 执行探测频率
	TimeoutSeconds      int32        `json:"timeout_seconds" valid:"timeout_seconds"`             // 超时时间
	SuccessThreshold    int32        `json:"success_threshold" valid:"success_threshold"`         // 健康阈值
	FailureThreshold    int32        `json:"failure_threshold" valid:"success_threshold"`         // 不健康阈值
	Command             string       `json:"command" valid:"command"`                             // 命令行：当检测方式为Commond时用
}

type HttpHeader struct {
	Name  string `json:"name" valid:"name"`
	Value string `json:"value" valid:"value"`
}

type PortMapping struct {
	Port       int32  `json:"port" valid:"port" `              // 暴露端口
	TargetPort int32  `json:"target_port" valid:"target_port"` // 目标端口
	Protocol   string `json:"protocol" valid:"protocol"`       // 协议
}

type EnvironmentVariable struct {
	Name  string `json:"name" valid:"value"`  // Key
	Value string `json:"value" valid:"value"` // Value
}

type Label struct {
	Key   string `json:"key" valid:"key"`     // Key
	Value string `json:"value" valid:"value"` // Value
}

func ValidK8sDeploymentCreateRequest(data interface{}, ctx *gin.Context) map[string][]string {
	rules := govalidator.MapData{
		"name":            []string{"required"},
		"namespace":       []string{"required"},
		"container_image": []string{"required"},
		"replicas":        []string{"required"},
	}

	messages := govalidator.MapData{
		"namespace": []string{
			"required: namespace不能为空",
		},
		"name": []string{
			"required: name不能为空",
		},
		"container_image": []string{
			"required: image不能为空",
		},
		"replicas": []string{
			"required: replicas不能为空",
		},
	}

	return app.ValidateOptions(data, rules, messages)
}

type K8sDeploymentUpdateRequest struct {
	Namespace string `json:"namespace" valid:"namespace"`
	Content   string `json:"content" valid:"content"`
}

func ValidK8sDeploymentUpdateRequest(data interface{}, ctx *gin.Context) map[string][]string {
	rules := govalidator.MapData{
		"namespace": []string{"required"},
		"content":   []string{"required"},
	}
	messages := govalidator.MapData{
		"namespace": []string{
			"required: namespace 不能为空",
		},
		"content": []string{
			"required: content 不能为空",
		},
	}

	// 校验入参

	return app.ValidateOptions(data, rules, messages)
}

type K8sDeploymentListRequest struct {
	K8sCommonRequest
	Page  int `json:"page" valid:"page" valid:"page"`    // 页数
	Limit int `json:"limit" valid:"limit" valid:"limit"` // 每页条数
}

func ValidK8sDeploymentListRequest(data interface{}, ctx *gin.Context) map[string][]string {
	rules := govalidator.MapData{
		"namespace": []string{"required"},
		"page":      []string{"required"},
		"limit":     []string{"required"},
	}
	messages := govalidator.MapData{
		"namespace": []string{
			"required: namespace不能为空",
		},
		"page": []string{
			"required: page不能为空",
		},
		"limit": []string{
			"required: limit不能为空",
		},
	}

	// 校验入参

	return app.ValidateOptions(data, rules, messages)
}

type K8sDeploymentScaleRequest struct {
	K8sCommonRequest
	ScaleNum int32 `json:"scale_num" valid:"scale_num"`
}

func ValidK8sDeploymentScaleRequest(data interface{}, ctx *gin.Context) map[string][]string {
	rules := govalidator.MapData{
		"name":      []string{"required"},
		"namespace": []string{"required"},
		"scale_num": []string{"required"},
	}
	messages := govalidator.MapData{
		"name": []string{
			"required: name不能为空",
		},
		"namespace": []string{
			"required: namespace不能为空",
		},
		"scale_num": []string{
			"required: scale_num不能为空",
		},
	}

	// 校验入参

	return app.ValidateOptions(data, rules, messages)
}

type K8sDeploymentRollbackRequest struct {
	K8sCommonRequest
	ReplicaSet string `json:"image,omitempty" valid:"replica_set"`
}

func ValidK8sDeploymentRollbackRequest(data interface{}, ctx *gin.Context) map[string][]string {
	rules := govalidator.MapData{
		"namespace":   []string{"required"},
		"name":        []string{"required"},
		"replica_set": []string{"required"},
	}
	messages := govalidator.MapData{
		"namespace": []string{
			"required: namespace 不能为空",
		},
		"name": []string{
			"required: name 不能为空",
		},
		"replica_set": []string{
			"required: replica_set 不能为空",
		},
	}

	// 校验入参

	return app.ValidateOptions(data, rules, messages)
}

3.2、实现 services 方法

在 internal/app/services/k8s_deployment.go 文件中新增 Deployment 操作的 services 方法，如下：

package services

import (
	"github.com/joker-bai/hawkeye/internal/app/requests"
	"github.com/joker-bai/hawkeye/internal/pkg/k8s/deployment"
	appv1 "k8s.io/api/apps/v1"
	corev1 "k8s.io/api/core/v1"
)

// Deployment Service

func (s *Services) K8sDeploymentList(param *requests.K8sDeploymentListRequest) ([]appv1.Deployment, error) {
	return deployment.GetDeploymentList(param.Name, param.Namespace, param.Page, param.Limit)
}

func (s *Services) K8sDeploymentDelete(param *requests.K8sCommonRequest) error {
	return deployment.DeleteDeployment(param.Name, param.Namespace)
}

func (s *Services) K8sDeploymentUpdate(param *requests.K8sDeploymentUpdateRequest) error {
	return deployment.UpdateDeployment(param.Namespace, param.Content)
}

func (s *Services) K8sDeploymentCreate(param *requests.K8sDeploymentCreateRequest) error {
	return deployment.CreateDeployment(param)
}

func (s *Services) K8sDeploymentScale(param *requests.K8sDeploymentScaleRequest) error {
	return deployment.ScaleDeployment(param.Name, param.Namespace, param.ScaleNum)
}

func (s *Services) K8sDeploymentRollback(param *requests.K8sDeploymentRollbackRequest) error {
	return deployment.RollbackDeployment(param.Name, param.Namespace, param.ReplicaSet)
}

func (s *Services) K8sDeploymentRestart(param *requests.K8sCommonRequest) error {
	return deployment.RestartDeployment(param.Name, param.Namespace)
}

func (s *Services) K8sDeploymentGetReplicaSet(param *requests.K8sCommonRequest) ([]appv1.ReplicaSet, error) {
	return deployment.GetDeploymentReplicaSet(param.Name, param.Namespace)
}

func (s *Services) K8sDeploymentGetPod(param *requests.K8sCommonRequest) ([]corev1.Pod, error) {
	return deployment.GetPod(param.Name, param.Namespace)
}

func (s *Services) K8sDeploymentDetail(param *requests.K8sCommonRequest) (*appv1.Deployment, error) {
	return deployment.GetDeploymentDetail(param.Name, param.Namespace)
}

4、新增 controllers 方法

在 internal/app/controllers/api/v1 目录中新增 k8s_deployment.go 文件，实现如下方法：

package k8s

import (
	"github.com/gin-gonic/gin"
	"github.com/joker-bai/hawkeye/global"
	"github.com/joker-bai/hawkeye/internal/app/requests"
	"github.com/joker-bai/hawkeye/internal/app/services"
	"github.com/joker-bai/hawkeye/pkg/app"
	"github.com/joker-bai/hawkeye/pkg/errorcode"
	"go.uber.org/zap"
)

type DeploymentController struct{}

// List godoc
// @Summary 列出K8s Deployment
// @Description 列出K8s Deployment
// @Tags K8s Deployment管理
// @Produce json
// @Param name query string false "Deployment名" maxlength(100)
// @Param namespace query string false "命名空间" maxlength(100)
// @Param page query int true "页码"
// @Param limit query int true "每页数量"
// @Success 200 {object} string "成功"
// @Failure 400 {object} errorcode.Error "请求错误"
// @Failure 500 {object} errorcode.Error "内部错误"
// @Router /api/v1/k8s/deployment/list [get]
func (k *DeploymentController) List(ctx *gin.Context) {
	param := requests.K8sDeploymentListRequest{}
	response := app.NewResponse(ctx)

	if ok := app.Validate(ctx, &param, requests.ValidK8sDeploymentListRequest); !ok {
		return
	}

	svc := services.New(ctx)
	deployments, err := svc.K8sDeploymentList(&param)
	if err != nil {
		global.Log.Error("获取Deployment列表失败", zap.String("error", err.Error()))
		response.ToErrorResponse(errorcode.ErrorK8sDeploymentListFail)
		return
	}

	response.ToResponseList(deployments, len(deployments))
}

// Update godoc
// @Summary 更新Deployment
// @Description 更新Deployment
// @Tags K8s Deployment管理
// @Produce json
// @Param body body requests.K8sDeploymentUpdateRequest true "body"
// @Success 200 {object} string "成功"
// @Failure 400 {object} errorcode.Error "请求错误"
// @Failure 500 {object} errorcode.Error "内部错误"
// @Router /api/v1/k8s/deployment/update [post]
func (k *DeploymentController) Update(ctx *gin.Context) {
	param := requests.K8sDeploymentUpdateRequest{}
	response := app.NewResponse(ctx)

	if ok := app.Validate(ctx, &param, requests.ValidK8sDeploymentUpdateRequest); !ok {
		return
	}

	svc := services.New(ctx)
	err := svc.K8sDeploymentUpdate(&param)
	if err != nil {
		global.Log.Error("更新Deployment失败", zap.String("error", err.Error()))
		response.ToErrorResponse(errorcode.ErrorK8sDeploymentUpdateFail)
		return
	}

	response.ToResponse(gin.H{
		"msg": "Deployment更新成功",
	})
}

// Delete godoc
// @Summary 删除Deployment
// @Description 删除Deployment
// @Tags K8s Deployment管理
// @Produce json
// @Param body body requests.K8sCommonRequest true "body"
// @Success 200 {object} string "成功"
// @Failure 400 {object} errorcode.Error "请求错误"
// @Failure 500 {object} errorcode.Error "内部错误"
// @Router /api/v1/k8s/deployment/delete [post]
func (k *DeploymentController) Delete(ctx *gin.Context) {
	param := requests.K8sCommonRequest{}
	response := app.NewResponse(ctx)

	if ok := app.Validate(ctx, &param, requests.ValidK8sCommonRequest); !ok {
		return
	}

	svc := services.New(ctx)
	err := svc.K8sDeploymentDelete(&param)
	if err != nil {
		global.Log.Error("删除Deployments失败", zap.String("error", err.Error()))
		response.ToErrorResponse(errorcode.ErrorK8sDeploymentDeleteFail)
		return
	}

	response.ToResponse(gin.H{
		"msg": "Deployment删除成功",
	})
}

// Create godoc
// @Summary 创建Deployment
// @Description 创建Deployment
// @Tags K8s Deployment管理
// @Produce json
// @Param body body requests.K8sDeploymentCreateRequest true "body"
// @Success 200 {object} string "成功"
// @Failure 400 {object} errorcode.Error "请求错误"
// @Failure 500 {object} errorcode.Error "内部错误"
// @Router /api/v1/k8s/deployment/create [post]
func (k *DeploymentController) Create(ctx *gin.Context) {
	param := requests.K8sDeploymentCreateRequest{}
	response := app.NewResponse(ctx)

	if ok := app.Validate(ctx, &param, requests.ValidK8sDeploymentCreateRequest); !ok {
		return
	}

	svc := services.New(ctx)
	err := svc.K8sDeploymentCreate(&param)
	if err != nil {
		global.Log.Error("创建Deployment失败", zap.String("error", err.Error()))
		response.ToErrorResponse(errorcode.ErrorK8sDeploymentCreateFail)
		return
	}

	response.ToResponse(gin.H{
		"msg": "Deployment创建成果",
	})
}

// Restart godoc
// @Summary 重启Deployment
// @Description 重启Deployment
// @Tags K8s Deployment管理
// @Produce json
// @Param body body requests.K8sCommonRequest true "body"
// @Success 200 {object} string "成功"
// @Failure 400 {object} errorcode.Error "请求错误"
// @Failure 500 {object} errorcode.Error "内部错误"
// @Router /api/v1/k8s/deployment/restart [post]
func (k *DeploymentController) Restart(ctx *gin.Context) {
	param := requests.K8sCommonRequest{}
	response := app.NewResponse(ctx)

	if ok := app.Validate(ctx, &param, requests.ValidK8sCommonRequest); !ok {
		return
	}

	svc := services.New(ctx)
	err := svc.K8sDeploymentRestart(&param)
	if err != nil {
		global.Log.Error("重启Deployment失败", zap.String("error", err.Error()))
		response.ToErrorResponse(errorcode.ErrorK8sDeploymentRestartFail)
		return
	}

	response.ToResponse(gin.H{
		"msg": "重启Deployment成功",
	})
}

// Rollback godoc
// @Summary 回滚Deployment
// @Description 回滚Deployment
// @Tags K8s Deployment管理
// @Produce json
// @Param body body requests.K8sDeploymentRollbackRequest true "body"
// @Success 200 {object} string "成功"
// @Failure 400 {object} errorcode.Error "请求错误"
// @Failure 500 {object} errorcode.Error "内部错误"
// @Router /api/v1/k8s/deployment/rollback [post]
func (k *DeploymentController) Rollback(ctx *gin.Context) {
	param := requests.K8sDeploymentRollbackRequest{}
	response := app.NewResponse(ctx)

	if ok := app.Validate(ctx, &param, requests.ValidK8sDeploymentRollbackRequest); !ok {
		return
	}

	svc := services.New(ctx)
	err := svc.K8sDeploymentRollback(&param)
	if err != nil {
		global.Log.Error("回滚Deployment失败", zap.String("error", err.Error()))
		response.ToErrorResponse(errorcode.ErrorK8sDeploymentRollbackFail)
		return
	}

	response.ToResponse(gin.H{
		"msg": "回滚Deployment成功",
	})
}

// Scale godoc
// @Summary 伸缩Deployment
// @Description 伸缩Deployment
// @Tags K8s Deployment管理
// @Produce json
// @Param body body requests.K8sDeploymentScaleRequest true "body"
// @Success 200 {object} string "成功"
// @Failure 400 {object} errorcode.Error "请求错误"
// @Failure 500 {object} errorcode.Error "内部错误"
// @Router /api/v1/k8s/deployment/scale [get]
func (k *DeploymentController) Scale(ctx *gin.Context) {
	param := requests.K8sDeploymentScaleRequest{}
	response := app.NewResponse(ctx)

	if ok := app.Validate(ctx, &param, requests.ValidK8sCommonRequest); !ok {
		return
	}

	svc := services.New(ctx)
	err := svc.K8sDeploymentScale(&param)
	if err != nil {
		global.Log.Error("伸缩Deployment失败", zap.String("error", err.Error()))
		response.ToErrorResponse(errorcode.ErrorK8sDeploymentScaleFail)
		return
	}

	response.ToResponse(gin.H{
		"msg": "伸缩Deployment成功",
	})
}

// GetReplicaSet godoc
// @Summary 获取Deployment的ReplicaSet
// @Description 获取Deployment的ReplicaSet
// @Tags K8s Deployment管理
// @Produce json
// @Param name query string false "Deployment名" maxlength(100)
// @Param namespace query string false "命名空间" maxlength(100)
// @Param container query string false "容器" maxlength(100)
// @Success 200 {object} string "成功"
// @Failure 400 {object} errorcode.Error "请求错误"
// @Failure 500 {object} errorcode.Error "内部错误"
// @Router /api/v1/k8s/deployment/replicaset [get]
func (k *DeploymentController) GetReplicaSet(ctx *gin.Context) {
	param := requests.K8sCommonRequest{}
	response := app.NewResponse(ctx)

	if ok := app.Validate(ctx, &param, requests.ValidCommonIdRequest); !ok {
		return
	}

	svc := services.New(ctx)
	replicas, err := svc.K8sDeploymentGetReplicaSet(&param)
	if err != nil {
		global.Log.Error("获取Deployment的ReplicaSet失败", zap.String("error", err.Error()))
		response.ToErrorResponse(errorcode.ErrorK8sDeploymentGetReplicaSetFail)
		return
	}

	response.ToResponse(gin.H{
		"data": replicas,
		"msg":  "获取Deployment的ReplicaSet成功",
	})
}

// GetPods godoc
// @Summary 获取Deployment的Pod
// @Description 获取Deployment的Pod
// @Tags K8s Deployment管理
// @Produce json
// @Param name query string false "Deployment名" maxlength(100)
// @Param namespace query string false "命名空间" maxlength(100)
// @Param container query string false "容器" maxlength(100)
// @Success 200 {object} string "成功"
// @Failure 400 {object} errorcode.Error "请求错误"
// @Failure 500 {object} errorcode.Error "内部错误"
// @Router /api/v1/k8s/deployment/pods [get]
func (k *DeploymentController) GetPods(ctx *gin.Context) {
	param := requests.K8sCommonRequest{}
	response := app.NewResponse(ctx)

	if ok := app.Validate(ctx, &param, requests.ValidCommonIdRequest); !ok {
		return
	}

	svc := services.New(ctx)
	pods, err := svc.K8sDeploymentGetPod(&param)
	if err != nil {
		global.Log.Error("获取获取Deployment的Pod失败", zap.String("error", err.Error()))
		response.ToErrorResponse(errorcode.ErrorK8sDeploymentGetPodFail)
		return
	}

	response.ToResponse(gin.H{
		"data": pods,
		"msg":  "获取Deployment的Pod成功",
	})
}

// Detail godoc
// @Summary 获取Deployment的详情
// @Description 获取Deployment的详情
// @Tags K8s Deployment管理
// @Produce json
// @Param name query string false "Job名" maxlength(100)
// @Param namespace query string false "命名空间" maxlength(100)
// @Success 200 {object} string "成功"
// @Failure 400 {object} errorcode.Error "请求错误"
// @Failure 500 {object} errorcode.Error "内部错误"
// @Router /api/v1/k8s/job/detail [get]
func (k *DeploymentController) Detail(ctx *gin.Context) {
	param := requests.K8sCommonRequest{}
	response := app.NewResponse(ctx)

	if ok := app.Validate(ctx, &param, requests.ValidK8sCommonRequest); !ok {
		return
	}

	svc := services.New(ctx)
	deploy, err := svc.K8sDeploymentDetail(&param)
	if err != nil {
		global.Log.Error("获取获取Deployment的详情失败", zap.String("error", err.Error()))
		response.ToErrorResponse(errorcode.ErrorK8sDeploymentDetailFail)
		return
	}

	response.ToResponse(gin.H{
		"data": deploy,
		"msg":  "获取Deployment的详情成功",
	})
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332

再到 pkg/errorcode/k8s.go 文件中新增如下错误代码：

package errorcode

var (
	......
	// K8s Deployment 错误码

	ErrorK8sDeploymentUpdateFail        = NewError(500011, "更新K8s Deployment失败")
	ErrorK8sDeploymentDeleteFail        = NewError(500012, "删除K8s Deployment失败")
	ErrorK8sDeploymentListFail          = NewError(500013, "获取K8s Deployment列表失败")
	ErrorK8sDeploymentDetailFail        = NewError(500014, "获取K8s Deployment详情失败")
	ErrorK8sDeploymentRestartFail       = NewError(500015, "重启K8s Deployment失败")
	ErrorK8sDeploymentGetReplicaSetFail = NewError(500016, "获取K8s Deployment的ReplicaSet失败")
	ErrorK8sDeploymentGetPodFail        = NewError(500017, "获取K8s Deployment的Pod失败")
	ErrorK8sDeploymentRollbackFail      = NewError(500018, "回滚K8s Deployment失败")
	ErrorK8sDeploymentScaleFail         = NewError(500019, "伸缩K8s Deployment失败")
	ErrorK8sDeploymentCreateFail        = NewError(500020, "创建K8s Deployment失败")
)

5、新增路由

在 internal/app/routers/k8s.go 文件中新增 Deployment 操作的路由，如下：

package routers

import (
	"github.com/gin-gonic/gin"
	v1 "github.com/joker-bai/kubemana/internal/app/controllers/api/v1"
)

type K8sRouter struct{}

func (r *K8sRouter) Inject(router *gin.RouterGroup) {

	k8s := router.Group("/k8s")
	{
		......

		// Deployment管理
		dc := new(k8s.DeploymentController)
		ks.GET("/deployment/list", dc.List)
		ks.POST("/deployment/create", dc.Create)
		ks.POST("/deployment/update", dc.Update)
		ks.POST("/deployment/delete", dc.Delete)
		ks.POST("/deployment/scale", dc.Scale)
        ks.GET("/deployment/detail", dc.Detail)
		ks.POST("/deployment/rollback", dc.Rollback)
		ks.POST("/deployment/restart", dc.Restart)
		ks.GET("/deployment/pods", dc.GetPods)
		ks.GET("/deployment/replicaset", dc.GetReplicaSet)
	}
}

6、测试一下

PS：测试之前都需要先初始化集群，在 4.3.1 Pod 章节有介绍。

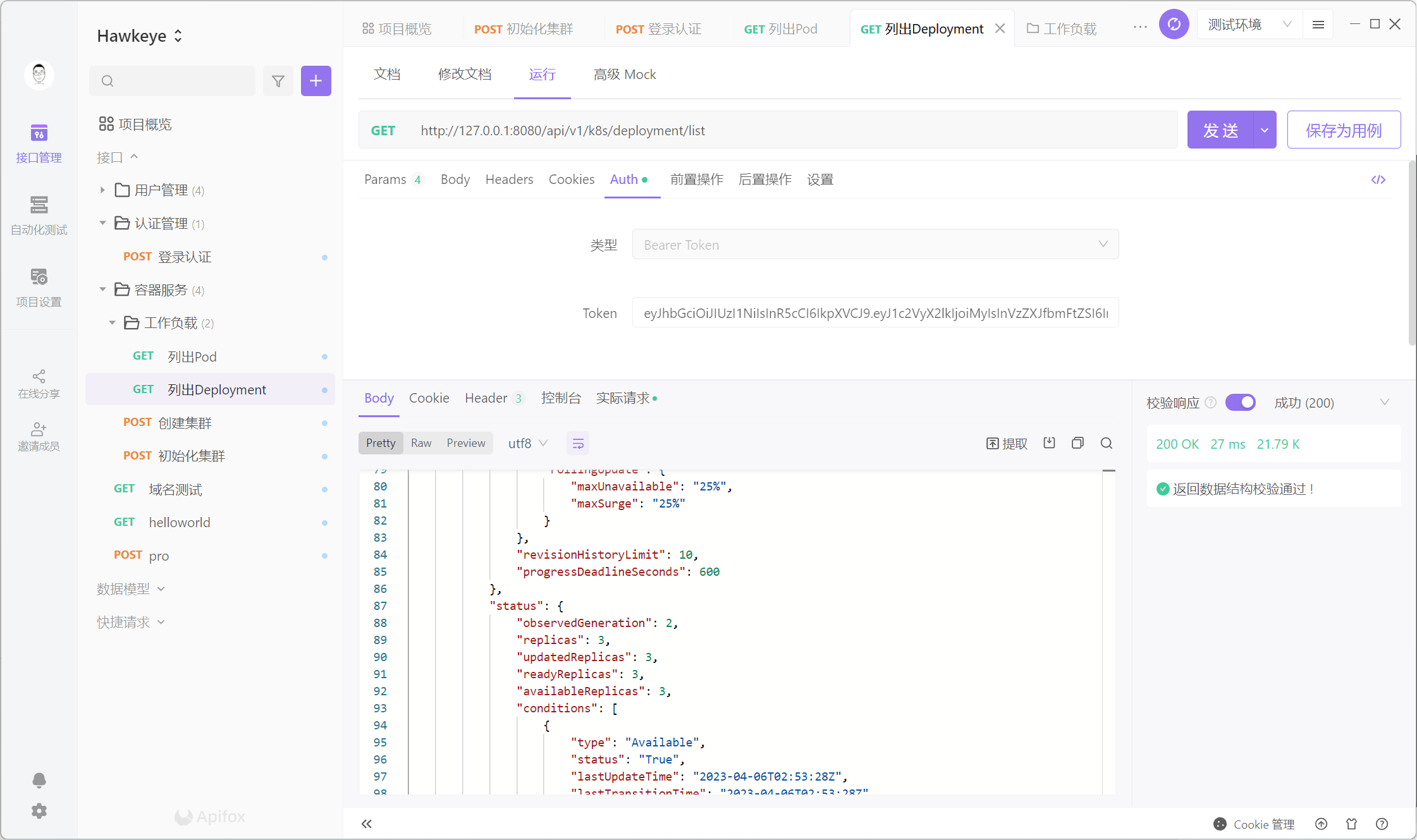

这里简单测试列出 Deployment 接口，如下：

c674a907bfac1ea703734fdacff3a21b MD5

其他接口自行下去测试。

7、代码版本

本节开发完成后，记得生成 swag 和标记代码版本，如下：

$ swag init
$ git add .
$ git commit -m "新增k8s集群deployment操作"

环境准备

项目初始化

用户管理

认证模块

容器服务

应用管理

Deployment管理原创

1、功能

2、类型转换

2.1、实现类型转换

2.2、实现增删改查

3、实现 services 方法

3.1、请求参数校验

3.2、实现 services 方法

4、新增 controllers 方法

5、新增路由

6、测试一下

7、代码版本

Deployment管理 原创 ​

1、功能 ​

2、类型转换 ​

2.1、实现类型转换 ​

2.2、实现增删改查 ​

3、实现 services 方法 ​

3.1、请求参数校验 ​

3.2、实现 services 方法 ​

4、新增 controllers 方法 ​

5、新增路由 ​

6、测试一下 ​

7、代码版本 ​

Deployment管理原创

1、功能

2、类型转换

2.1、实现类型转换

2.2、实现增删改查

3、实现 services 方法

3.1、请求参数校验

3.2、实现 services 方法

4、新增 controllers 方法

5、新增路由

6、测试一下

7、代码版本
